| ①Taking More Pieces by Easy Operation | ||||||||||||||||||||||||||||||
| before | ||||||||||||||||||||||||||||||
| ■ The skilled worker is necessary to repair directly the command of NC data for taking more pieces. ■ One NC data can just take only one piece and taking many pieces requires two or more die-cutting work. ■ Picking one sheet is improper. |
||||||||||||||||||||||||||||||
| ↓ | ||||||||||||||||||||||||||||||
| Sheet metal support system | ||||||||||||||||||||||||||||||
| ●Working based on a gentle work instruction is possible for a newcomer female worker in about 2 weeks after hiring in the company which the results are as same as with the skilled worker. (Example in our company) ●It can take many pieces in just dragging the mouse. ●Taking more pieces is possible in just one die-cutting work. ●It is safe and easy because it has counting functions for the take-out pieces, and picture of material to check the die-cutting and material edges. ●Take-out pieces parameters can be seen and adjusted onscreen. (Offset, Crosspiece Width, Product Array Pitch) ●One sheet can be taken. ●The NC data of PROPACK can be shifted easily. ●Deliberately selecting the take-out pieces combinations can be done easily. |
||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||
|
It is a picking screen in large numbers.
|
||||||||||||||||||||||||||||||
| Everybody can do it easily. This can also greatly improve the labor cost reduction and the work efficiency. |
||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
| ②It eliminates the unnecessary working on exchanging tools and dies. | ||||||||||||||||||||||||||||||
| before | ||||||||||||||||||||||||||||||
| ■ There is a necessary work for exchanging the tools and dies every time because there is a limitation in the number of tools and dies that can be installed. ■It is necessary to confirm the currently installed tools and dies. ■Confirming the tools and dies after installing it takes time. ■Possible defects can occur if the worker confirms it mistakenly. |
||||||||||||||||||||||||||||||
| ↓ | ||||||||||||||||||||||||||||||
| Sheet metal support system | ||||||||||||||||||||||||||||||
| ●With reference to the currently equipped tools and dies, the unnecessary exchanging of tools and dies eliminates by just changing the Turret No in NC data. (The exchanging frequency becomes at minimum.) ●The time and effort of the check of those other than the exchanged die can be saved. ●There is no defective worry. |
||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||
 |
 |
|||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||
| Screen | ||||||||||||||||||||||||||||||
| As a result, the worker's load is reduced. A 20% utilization rate improvements for machines is possible! |
||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
| ③Material Edge is Effectively Use | ||||||||||||||||||||||||||||||
| before | ||||||||||||||||||||||||||||||
| ■ Since there is no recognized stamped out on the already pierced material edge, the size of the material edge must be planned and die cutting must be performed. (It takes much time.) | ||||||||||||||||||||||||||||||
| ↓ | ||||||||||||||||||||||||||||||
| Sheet metal support system | ||||||||||||||||||||||||||||||

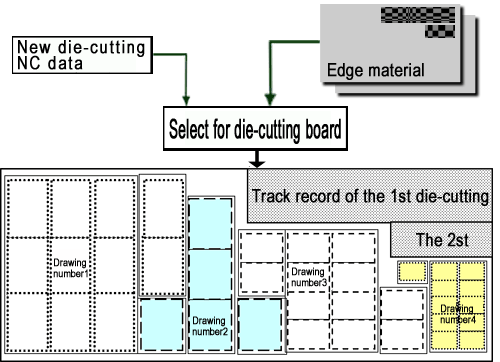

| ●Because the pierced edge material is memorized, a size can be calculated and more picking can be performed effectively at high-speed. | ||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||
| Because edge material can be pierced effectively, the cost of materials can be cut down at about 25%! | ||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||
