Machinery

As for our company the order received to stock control, progress control, shipment control even are controlled by the production management system of self-development.

The animation of mechanical equipment is being delivered in this page.

WindowsMediaPlayer is necessary to see the animation.
As for this animation, the without notice use / without notice reproduction is prohibition.

■3D CAD system （DESIGNBASE etc.）	4units
■2D CAD system （HP ME10 etc）	each 1units
■Automatic programming device （The company developed CAD/CAM)	3units
■AP200	1units
■AP100	1units
■PICAM	2units
■The company developed Drawing Management System 　 Paper drawing electronic digitalization filing system	1set
■The company developed Drawing Retrieval Terminal 　 Searching of the electron drawing/Display system	15units
■Production Management System

ＡＰ100

Production Management System

■FMC (Automated storage and retrieval system, TPP with ATC,　Separation sort device)	1units
■CNC Turret punch press	2units
■Power press	7units
■NC set press	1units
■Carbon dioxide laser beam processing machine(3.6kw) 　 (SUS unoxidization cut t6 iron t20)	2units
■Foot press	5units

■Shearing	3units
■Chamfering	1units

Long size (4 m) bending processing! [200 tons]
―　Big Bender　―

　　　　

■Automatic bending system(ASTRO540)
[Full automatic unattended bending processing,Complicated process,The thin board,Greatly piece bending possibility]

1units

Movie Play （158kbps）

　
ASTRO540

Bending
simulation

■NT bender (FαBⅢ etc.)

5units

■NC AC Servo bender

2units

■Universal press

1units

■Wet-type Automatic Deburring Machine	1units
■Ball-type Automatic Deburring Machine	1units
■Riveting Machine	1units
■Precise Sheet Leveler (Large) Width 750mm (Small) Width 150mm	2units
■NC Tapping Machine	1units
■Automatic Tapper	2units
■Manually Operated Tapper	2units
■Ball Board	6units
■Collection dust device	1units

■3-dimensional automatic NC welding machine(Tig)	1units
■NC stud welding machine	1units
■Welding robot　(co2)	1units
■Digital TIG welding machine	4units
■Capacitor spot welding machine(Aluminum is acceptable)	1units
■DC spot welding machine(Aluminum is acceptable)	1units
■AC spot welding machine	3units
■CO2 welding machine	2units
■MIG welding machine	1units
■Air plasma	3units
■Arc welding machine	1units
■Gas welding machine	1units
■YAG welding machine (This machine burns welding and that few)	1units

Instantaneous welding!
There are not welding marks.

YAG welding machine

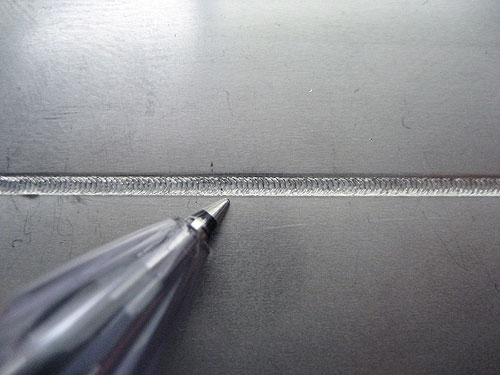

YAG welding machine Bead
(Click the photograph!)

[SPCCt3.2]
Pulling it every, the run batted in of prescription it is doing the strength test by the test machine.

※Spot welding pulls and be carrying out it the strength test every a lot.

■Sand-Blast	1units
■Remove the debris of welding / Electrolysis grinding machine	1units
■Stainless steel pickling equipment	1set
■Belt sander	5units
■Buffing machine	1units

■Wire electrical discharge machine	1units
■Complicated hole electrical discharge machine	1units
■Lathe machine	3units
■die grinding board	1units
■Milling machine	1units
■Flat-surface grinding machine(600×400)	2units
■Contour machine	1units
■Abrasive metal-cutting machine	1units
■rasp board (file board)	1units
■NC lathe machine	1units

Minute hole electrical discharge machine

■Three-dimensional measuring machine (XYZAX 800×600×400)	1units
■Inspection navigation (Company developed inspection system)	1set
■Projector(NIKON)	1units
■Coating thickness gauge	1units
